Open Access v4 Now shipping!

The new Open Access v4 Standard is now shipping! For those who have been waiting, wait no longer. We have a large quantity of these in stock and available in the store.



The Open Access, as it ships:

Open Access Standard v4. New!

















The Open Access Standand version 4 has an Arduino-compatible Atmega 328P on-board and support for powering and interfacing with the Raspberry Pi via it’s 26-pin header.  Features include:



  • Atmega328P with support for 200 local users in eeprom. Arduino compatible w/USB and ICSP programming.
  • (2) Wiegand RFID reader ports with fused power, LED, and buzzer support
  • (4) Supervised alarm zones
  • (1) Unsupervised tamper zone
  • (4) 5A relay outputs
  • (2) 12V auxilliary power ports
  • Selectable USB output or direct-attach 3.3V UART to the Raspberry Pi
  • Real-time clock with battery backup (DS1307)
  • Serial i2c EEPROM (Atmel AT24)
  • Expansion header for CD or more inputs/outputs

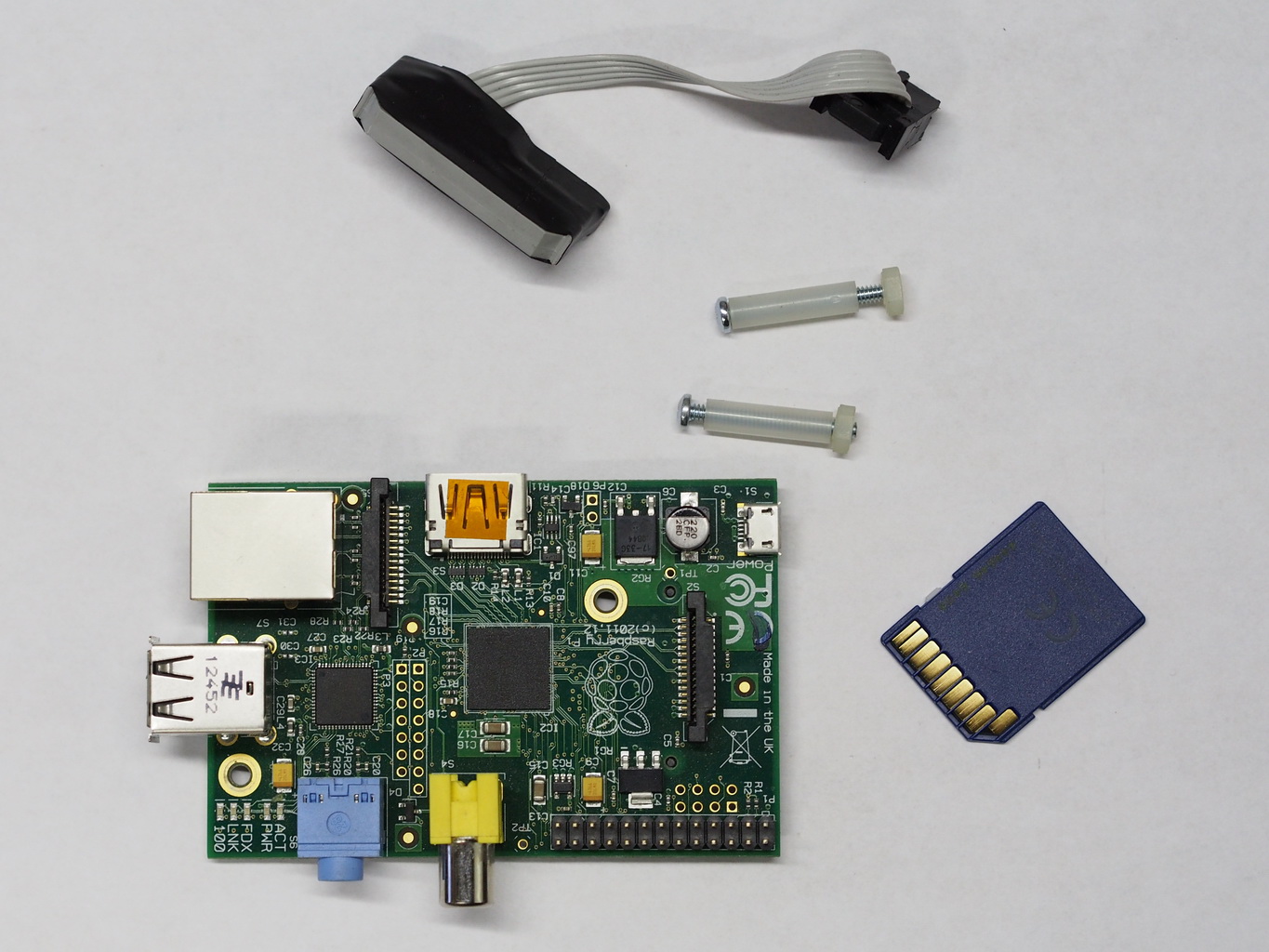

The Open Access Raspberry Pi Kit. Includes a Raspberry Pi Model B (v2), mounting hardware and special ribbon cable, providing power and data

Raspberry Pi Add-on kit

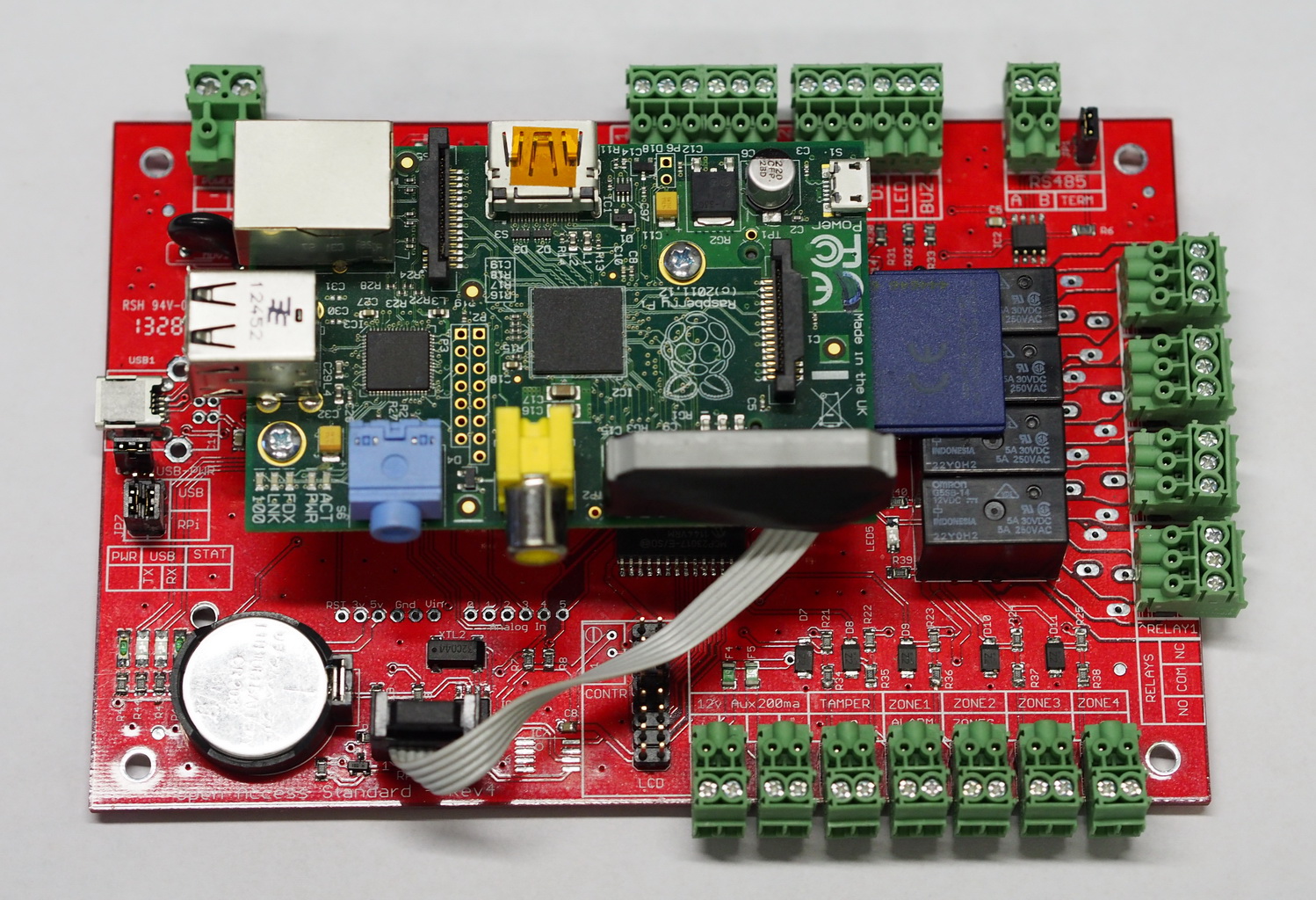

Picture of the Raspberry Pi kit installed:

OLYMPUS DIGITAL CAMERA















Arclight

September 21, 2013
