Open Access Mega

I’ve been working on a larger, SMT version of the Open Access controller for the last 2 weeks.

The prototype boards have just been ordered, and I’ll post the design as soon as I get one built and tested.



Features include:

  • 8x5A Form-C relays
  • 16xSupervised alarm zones
  • 2xWiegand reader ports with full pinout (8 pins/ea)
  • RS-485 on-board
  • All new switching PSU



Check out:

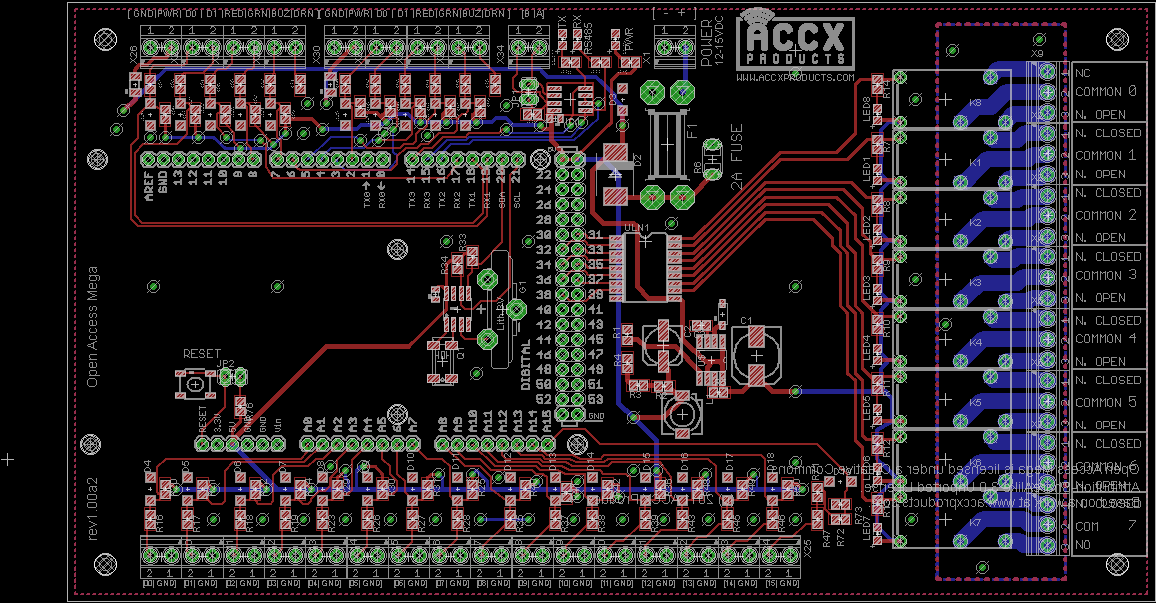

New Open Access board, based on the Arduino Mega

November 26, 2011
